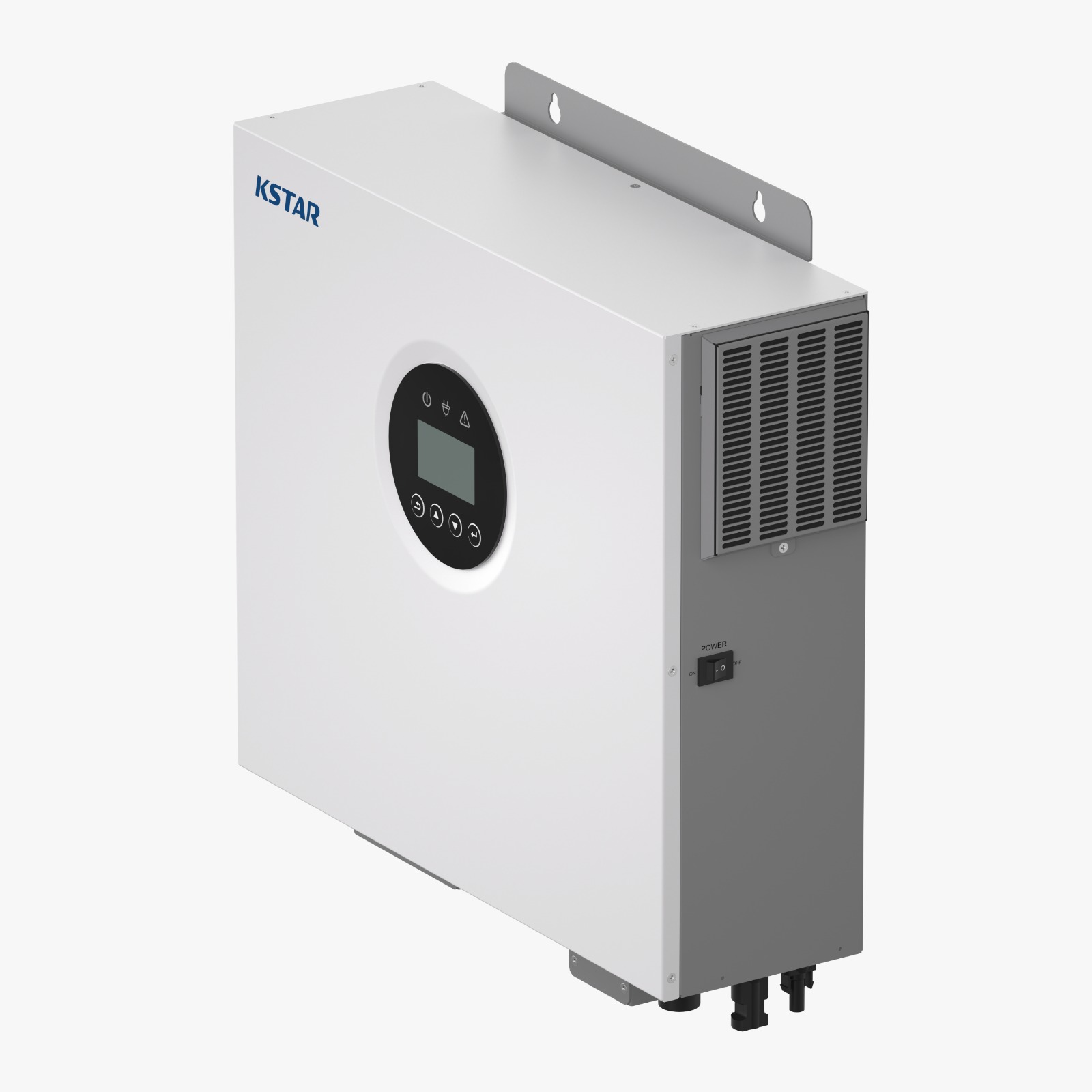

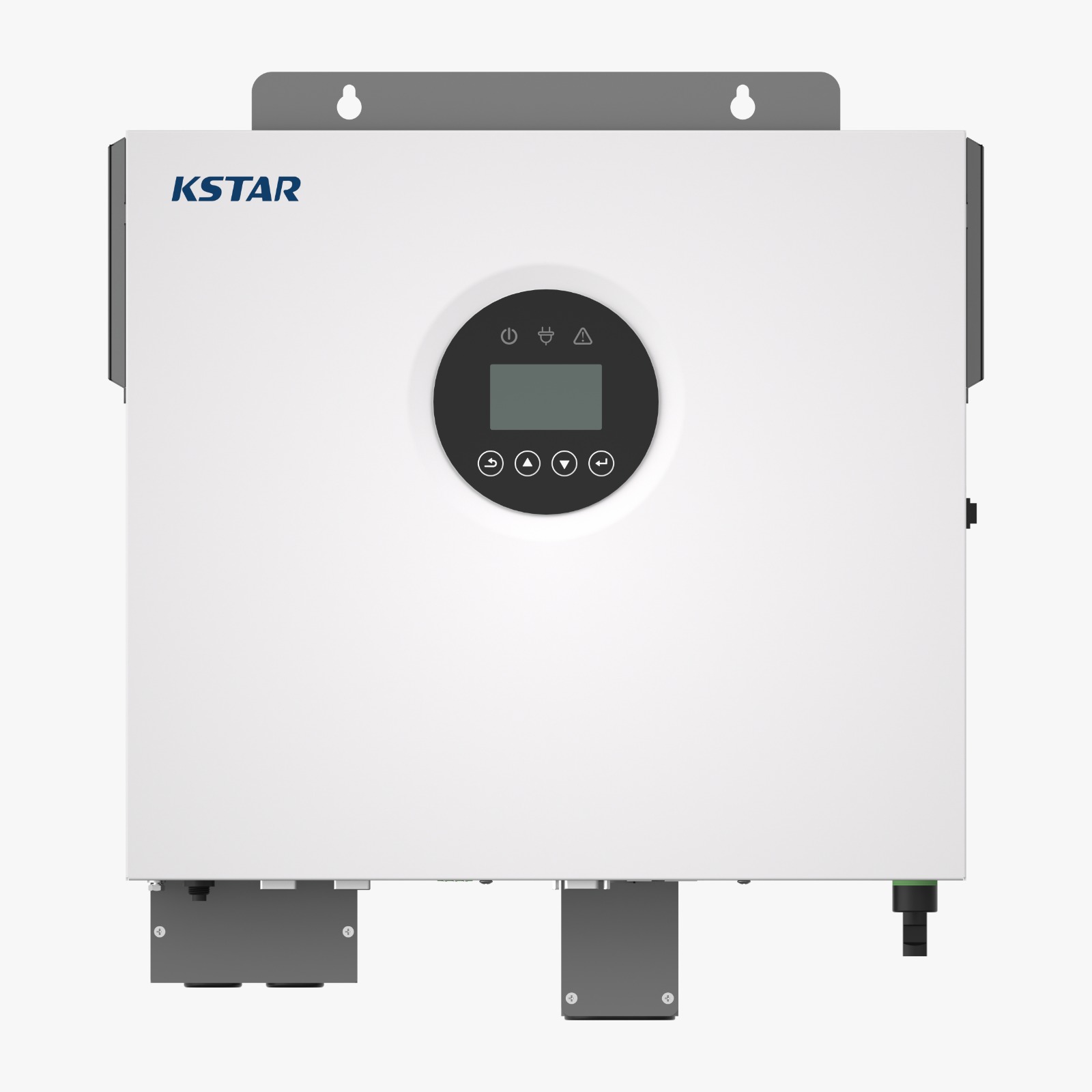

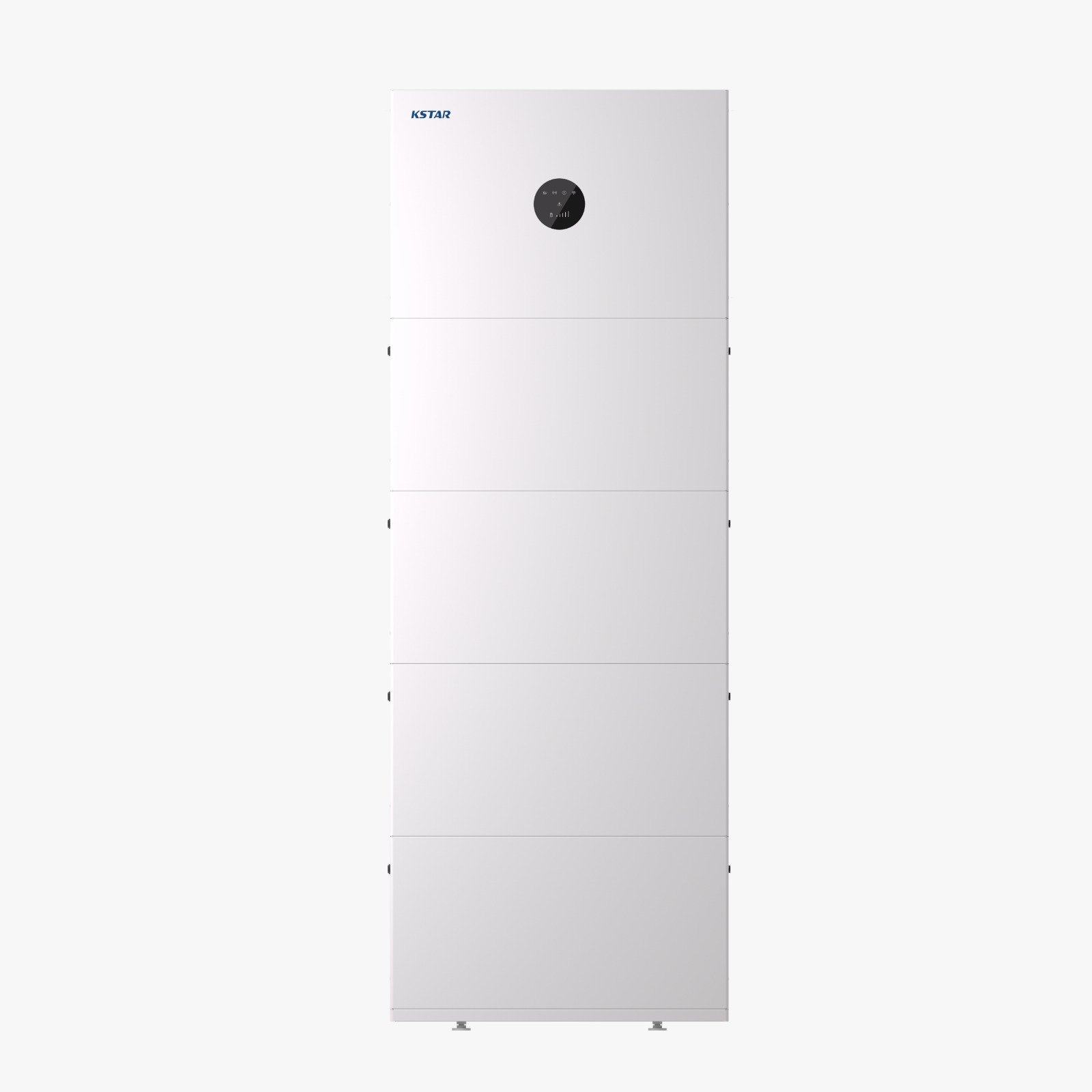

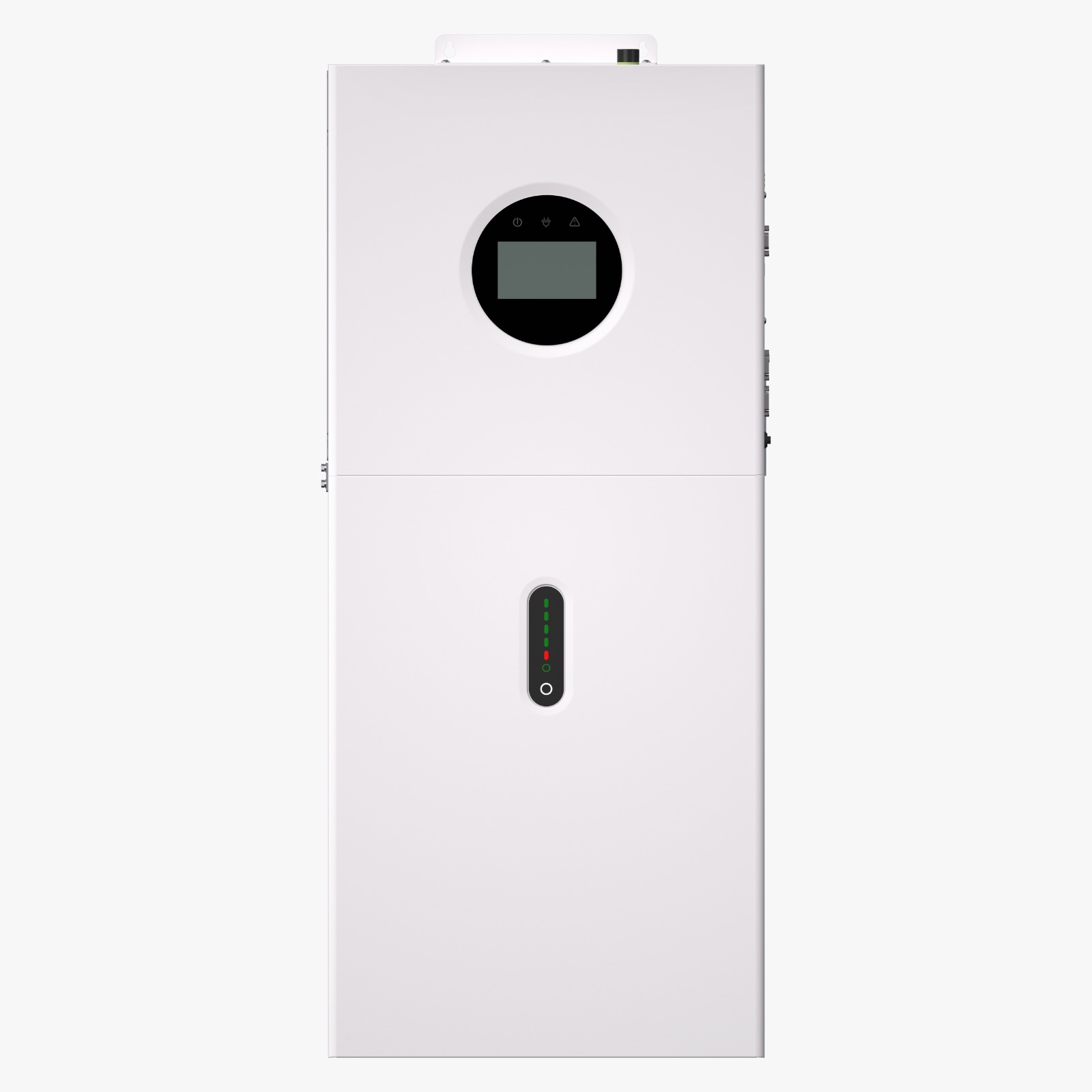

KSTAR Residential ESS & HH10 Hybrid Inverter

Brand: KSTAR

Rating: 5.0 / 5

0795 855 754

Welcome to Power & Solar Systems Ltd, your certified distributor and installer of the best residential single-phase hybrid solar inverters in Kenya. Are frequent KPLC power blackouts, rising electricity bills, and voltage fluctuations disrupting your household operations? Across Nairobi, Kitengela, Machakos, Kiambu, Rongai, Ngong, Kiserian, Kisaju, Syokimau, Utawala, Joska, Malaa, and major urban centers including Nakuru, Mombasa, Eldoret, Kisumu, Thika, and Naivasha—homeowners and estate developers depend on our engineering team to design, size, and install high-performance KSTAR KnightH Series single-phase residential hybrid inverters.

As leading power backup and renewable energy engineering experts in Kenya, we integrate Tier-1 hardware featuring the KSTAR KnightH 3.6kW, 6kW, and 10kW single-phase hybrid inverters with high-capacity Lithium LFP battery storage (such as KSTAR H-PACK 5.12kWh and BlueSpark series) and Sacred Sun deep-cycle batteries. Operating with ultra-fast UPS backup switching (<10-20ms transfer time) and dedicated generator input, our systems guarantee seamless 24/7 power, 100% solar self-consumption optimization, and complete energy independence

Core Residential Hybrid Inverter Highlights
Key Performance Highlights:
• Separate Power Capacities: Customized models available in 3.6kW, 6kW, and heavy-duty 10kW single-phase hybrid configurations.
• Ultra-Fast UPS Transfer (<10-20 ms): Instant automated power switching protects computers, TVs, and smart devices without rebooting.
• High-Current Battery Charging: Delivers up to 120A charging (3.6kW / 6kW models) and up to 200A solar charging on the 10kW model.
• High PV Input Sizing: Accommodates PV array sizing up to 6,700W (3.6kW / 6kW) and up to 18,000W (18 kWp on 10kW).

Advanced Single-Phase Hybrid Inverter Features & Smart Energy Management

Our KSTAR KnightH single-phase residential hybrid inverters integrate solar PV generation, lithium battery storage, KPLC grid power, and backup diesel generators into a unified smart energy system:

·        Dual On-Grid & Off-Grid Hybrid Operation: Dynamically prioritizes free daytime solar power, routes excess generation to charge lithium batteries, and smoothly blends KPLC utility or backup generator power to power heavy household loads.

·        Ultra-Fast UPS Backup Switching (<10–20 ms): Operates with an automated transfer speed under 20 milliseconds (typically 10–15ms). When KPLC grid power drops, critical home circuits, security systems, and internet routers remain operational without interruption.

·        High PV Input Capacity & Broad Voltage Window: Engineered with 500V DC maximum PV input voltage and MPPT operating windows (down to 60V on 10kW) to ensure early morning and late evening solar harvesting.

·        High-Current Fast Charging & Generator Auto-Start: Built-in smart charging algorithms support high continuous charging currents (60A to 200A) and include dry-contact generator control for automated backup charging during multi-day grid blackouts.

Detailed Residential Hybrid Inverter Specifications Catalog

3.6 kW Single-Phase Hybrid Inverter (KnightH 3600-24 / KnightH 3600-48)

Parameter Specification

Technical Rating & Value

Nominal Output Power

3,600 W / 3,600 VA (Single-Phase 230 Vac)

Max. PV Array Input Power

4,000 W (24V battery model) / 6,700 W (48V battery model)

Max. DC Voltage / Start Voltage

500 Vdc / 120 Vdc

MPPT Voltage Range

120 Vdc – 450 Vdc (1 MPPT)

Max. Input Current per MPPT

18 A

Nominal Battery Voltage (LiFePO4 / Lead-Acid)

25.6 Vdc / 51.2 Vdc (24 Vdc / 48 Vdc Lead-Acid)

Max. Solar / AC Charge Current

60 A (24V model) / 120 A (48V model)

Max. Discharging Current

120 A

UPS Transfer Time

10 ms typical / 15 ms max (PC), 20 ms (Appliances)

Waveform & THDv

Pure Sine Wave (<3% THDv)

Parallel Operation

Optional, up to 6 units in parallel

Dimensions & Weight

134.0 × 427.5 × 460.8 mm / 11.8 kg

Enclosure Rating & Cooling

IP21 / Intelligent Fan Cooling



6.0 kW Single-Phase Hybrid Inverter (KnightH 6000-48)

Parameter Specification

Technical Rating & Value

Nominal Output Power

6,000 W / 6,000 VA (Single-Phase 230 Vac)

Max. PV Array Input Power

6,700 W

Max. DC Voltage / Start Voltage

500 Vdc / 120 Vdc

MPPT Voltage Range

120 Vdc – 450 Vdc (1 MPPT)

Max. Input Current per MPPT

27 A

Nominal Battery Voltage (LiFePO4 / Lead-Acid)

51.2 Vdc (48 Vdc Lead-Acid)

Max. Solar / AC Charge Current

120 A

Max. Discharging Current

120 A

UPS Transfer Time

10 ms typical / 15 ms max (PC), 20 ms (Appliances)

Waveform & THDv

Pure Sine Wave (<3% THDv)

Parallel Operation

Optional, up to 6 units in parallel

Dimensions & Weight

134.0 × 427.5 × 460.8 mm / 13.4 kg

Enclosure Rating & Cooling

IP21 / Intelligent Fan Cooling



10.0 kW Single-Phase Hybrid Inverter (HH10KS / K-Home 10kW)

Parameter Specification

Technical Rating & Value

Nominal Output Power

10,000 W (10.0 kW) / 10,000 VA (Single-Phase 230 Vac)

Max. PV Array Input Power

18,000 Wp (18.0 kWp DC Array)

Max. DC Voltage / Start Voltage

500 Vdc / 75 Vdc

MPPT Voltage Range

60 Vdc – 450 Vdc (2 MPPT Trackers)

Max. Input Current per MPPT

27 A per MPPT (30 A Short-Circuit Current)

Nominal Battery Voltage (LiFePO4)

51.2 Vdc (Operating Range: 44.0 V – 57.6 Vdc)

Max. Solar Charging Current

200 A (with 4 lithium packs)

Max. AC Charging / Discharging Current

160 A AC Charge / 200 A Continuous Discharge

Backup Output Power

9.5 kW (Battery Mode) / 10.0 kW (PV Mode)

Dual AC Output & THDv

Yes (Dual Load Output) / Pure Sine Wave (<3% THDv)

Dimensions & Weight

435 × 580 × 155 mm / 24.5 kg

Enclosure Rating & Cooling

IP21 / Intelligent Fan Cooling / Wall Mount



Versatile Applications Across Kenya

·        Urban Residential Estates & Townhouses (3.6kW – 6kW): Eliminate monthly power bills and preserve uninterrupted power for lights, Wi-Fi, fridges, and entertainment systems in Karen, Runda, Muthaiga, Lavington, Syokimau, Ngong, and Thika.

·        Large Luxury Residences & Peri-Urban Homes (10kW): Easily power high-draw household loads including borehole pumps, water heaters, microwave ovens, washing machines, and air conditioners in Kitengela, Kisaju, Kiserian, Rongai, Malaa, and Joska.

·        Commercial Home Offices & Small Businesses (6kW – 10kW): Protect server racks, computers, printers, point-of-sale terminals, and security camera networks with instant <10-20ms UPS transfer times across Nairobi, Nakuru, Eldoret, and Kisumu.

Frequently Asked Questions (FAQs) About Single-Phase Residential Hybrid Inverters

Q1: How do I choose between a 3.6kW, 6kW, or 10kW single-phase hybrid inverter?

Choice depends on your peak electrical load. A 3.6kW inverter is ideal for standard homes (lighting, fridges, TVs, Wi-Fi). A 6kW inverter easily powers larger homes with washing machines and microwave ovens. A 10kW single-phase hybrid inverter is designed for heavy residential loads, supporting multiple air conditioners, borehole pumps, and large lithium battery banks.

Q2: Can the 10kW single-phase hybrid inverter handle my borehole pump or water heater?

Yes! The KSTAR 10kW single-phase hybrid inverter features an 18kWp PV input capacity and 200A discharging capability, providing the heavy surge capacity necessary to start motor loads like borehole pumps, booster pumps, and water heaters effortlessly.

Q3: Are these single-phase hybrid inverters compatible with Lithium battery packs?

Yes! All KSTAR KnightH and 10kW models are fully optimized for 48V / 51.2V LFP (LiFePO4) lithium battery packs (such as KSTAR H-PACK 5.12kWh and BlueSpark 16kWh modules) offering 6,000+ cycles @ 100% DoD. They are also compatible with Sacred Sun GEL/AGM deep cycle batteries.

Why Choose Power & Solar Systems Ltd?

·        Authorized Distributor of Genuine Hardware: We supply 100% authentic KSTAR KnightH hybrid inverters and lithium BESS batteries backed by official manufacturer warranties.

·        EPRA & Renewable Engineering Certified: Our qualified solar power engineers handle professional site load audits, electrical distribution cabling, PV array string sizing, and inverter commissioning.

·        Nationwide Supply & Technical Support: We deliver and install turnkey residential solar hybrid systems across Nairobi, Kitengela, Machakos, Kiambu, Rongai, Ngong, Kiserian, Kisaju, Syokimau, Utawala, Joska, Malaa, and all major towns in Kenya.

·        Turnkey Power Independence: From initial load assessment to battery sizing and 24/7 technical support, we ensure your home enjoys uninterrupted clean energy.
