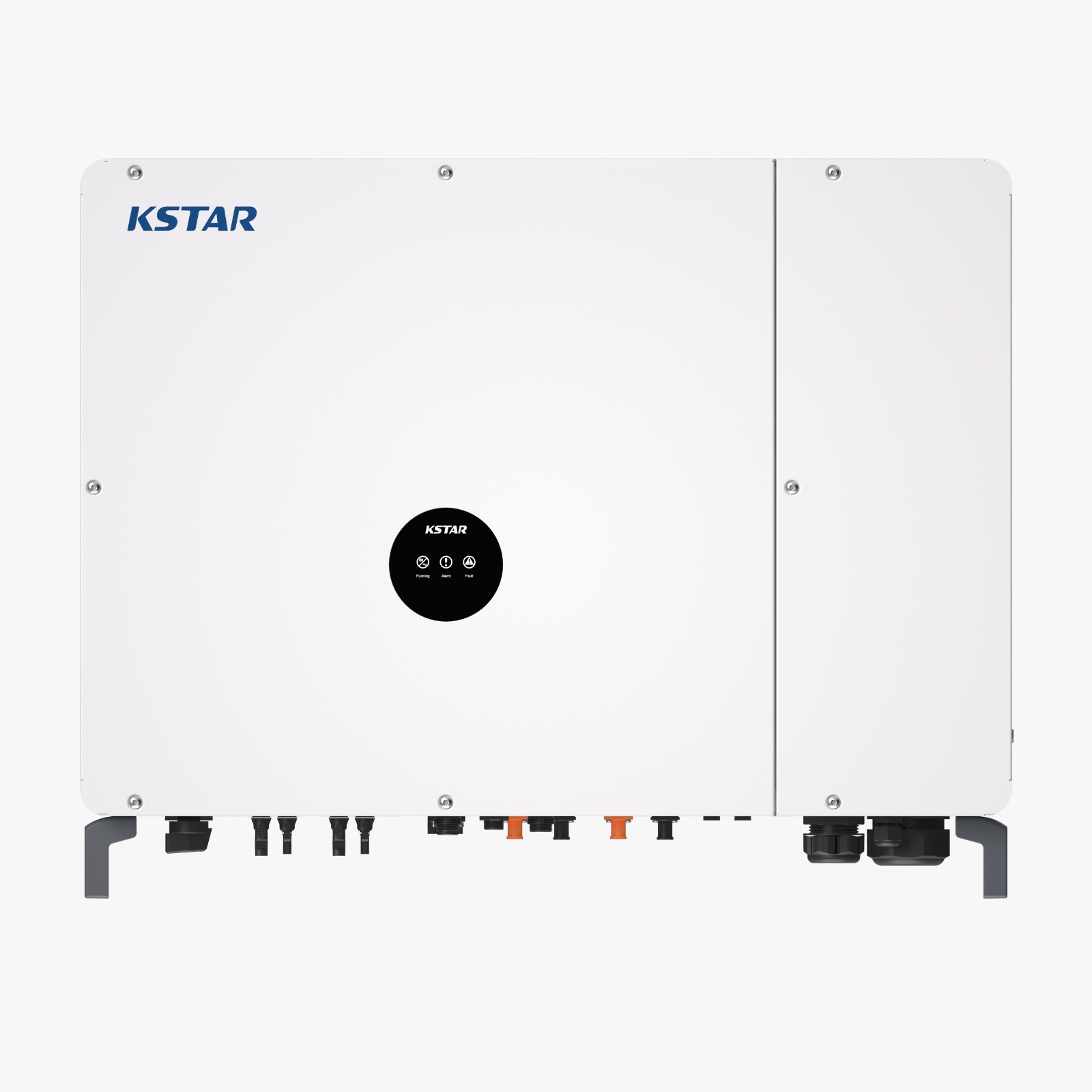

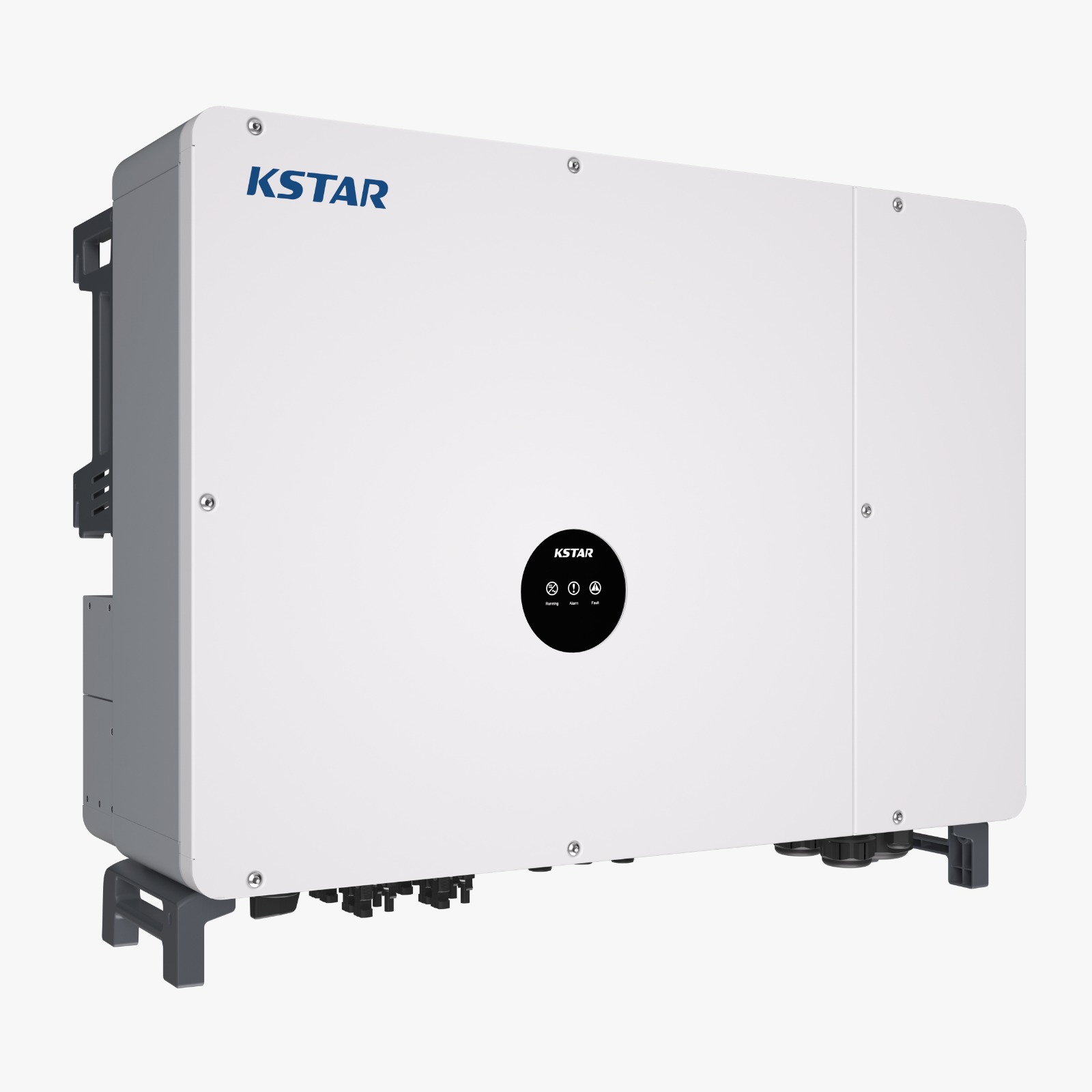

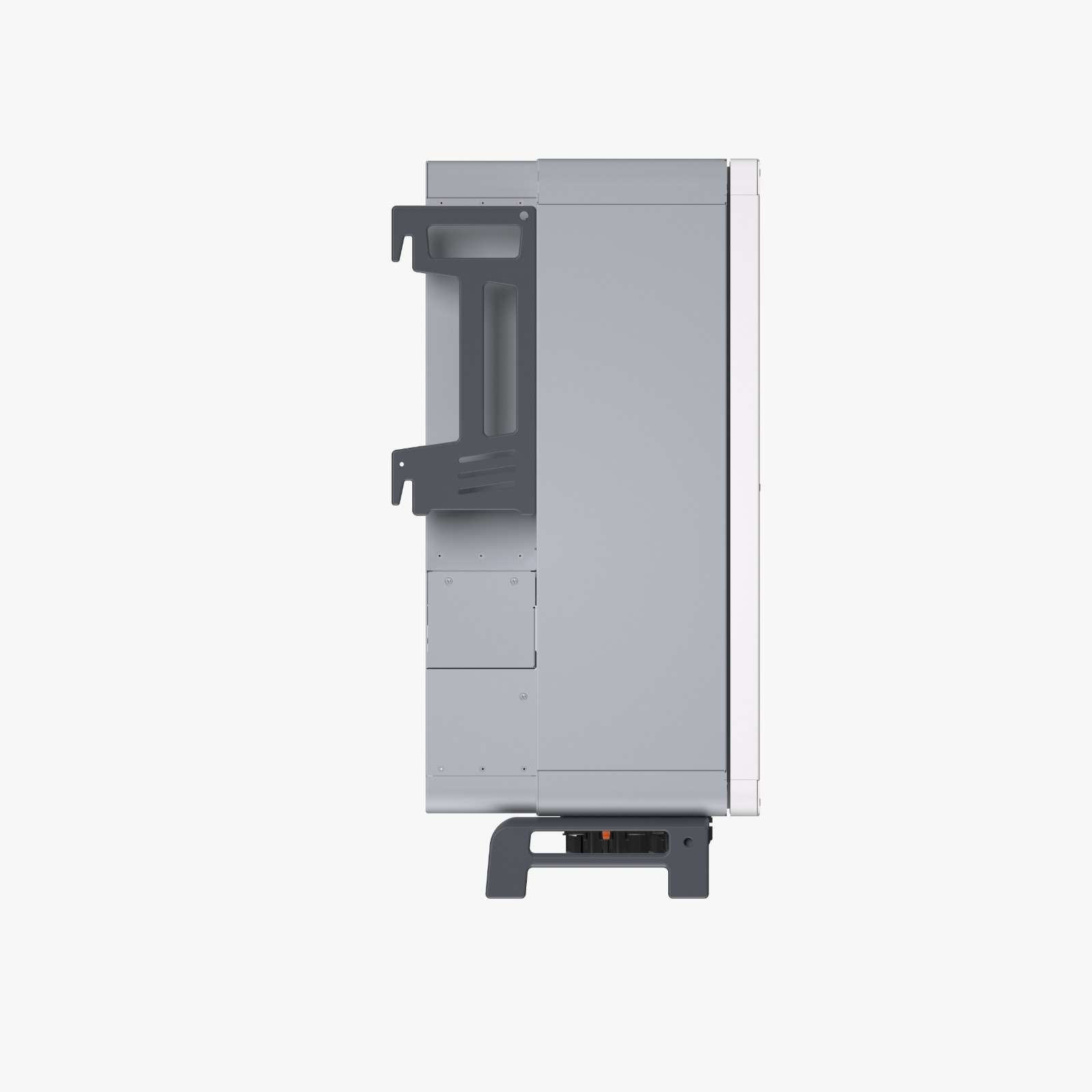

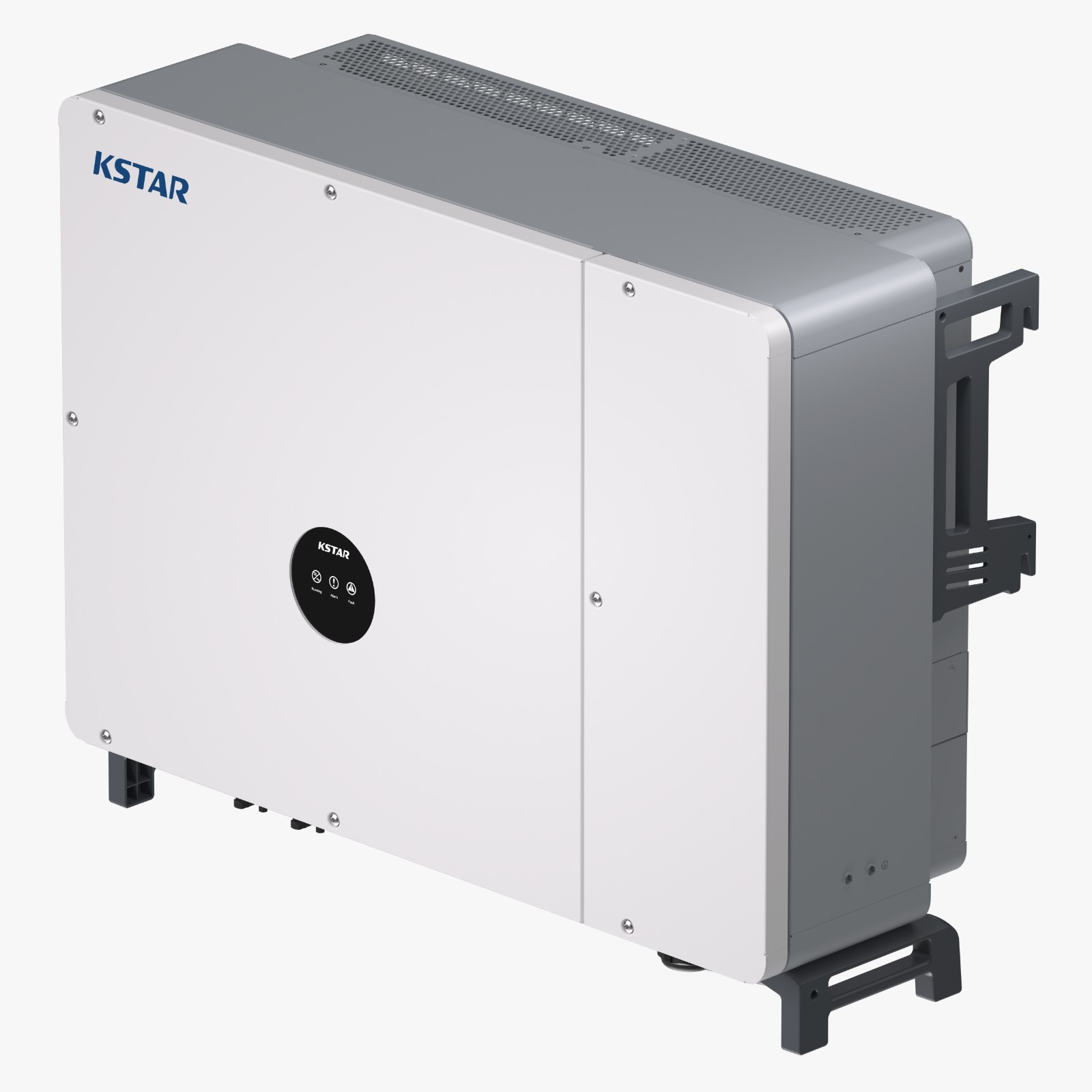

Commercial inverters

Brand: KSTAR

Rating: 5.0 / 5

0795 855 754

As leading C&I energy storage and power backup engineering experts in Kenya, we integrate Tier-1 hardware featuring KSTAR BluePulse C&I Hybrid Inverters (KAC20DP2 to KAC125DP2) paired with outdoor CATL LFP battery cabinets (BC70DE2 to BC233DE2) and STS automatic switching cabinets (STS100D/STS250D). With ultra-fast UPS backup switching (<10-20 ms), smart peak shaving, time-of-use (TOU) tariff management, and generator synchronization, our systems deliver zero-downtime productivity, maximum solar self-consumption, and drastic operational cost savings.

Core Commercial Hybrid Inverter Highlights
Key Performance Highlights:
• Broad C&I Power Range: Three-phase hybrid inverter capacities scaled from 20kW, 30kW, 50kW, 80kW, 100kW, up to 125kW.
• Ultra-Fast UPS Backup (<10–20 ms): High-speed automated switching protects critical industrial machinery and IT data centers without interruption.
• Smart C&I Energy Management: Native support for Peak Shaving, Time-of-Use (TOU) load shifting, Self-Consumption, and Diesel Generator integration.
• Integrated Outdoor BESS Integration: Pairs seamlessly with outdoor CATL LiFePO4 battery cabinets (71.68 kWh to 233 kWh) with double fire suppression systems.

Advanced C&I Hybrid Inverter Features & Energy Management

Our KSTAR BluePulse C&I hybrid inverters seamlessly integrate high-capacity rooftop or ground-mount solar arrays, outdoor CATL lithium energy storage systems (BESS), KPLC utility power, and industrial diesel generators into a unified smart energy infrastructure:

·        Dual On-Grid & Off-Grid Hybrid Operation: Dynamically manages daytime solar PV generation to power factory loads, routes excess energy to charge outdoor LFP battery banks, and supplements remaining power demand from KPLC or diesel generators.

·        Ultra-Fast UPS Backup Switching (<10–20 ms): Operates with automated transfer switching under 20ms (with STS100D/STS250D cabinets). Eliminates production stoppages, computer server reboots, and equipment downtime during utility blackouts.

·        Peak Shaving & Demand Charge Management: Intelligent EMS automatically discharges battery power during peak KPLC billing hours to reduce maximum demand charges for C&I power consumers.

·        High PV Input Sizing & Broad MPPT Voltage (Up to 1000V): Engineered with 1000V DC maximum PV input voltage and up to 8 MPPT trackers (on 80kW–125kW models), supporting high DC/AC oversizing ratios up to 2.0 (e.g. 250 kWp PV on 125kW inverter).

·        Advanced Fire Safety & Industrial Reliability: Built with IP65 transformerless hybrid inverters paired with IP54 outdoor battery cabinets featuring CATL LFP cells, CO detection, sound/light alarms, exhaust ventilation, and double fire suppression systems.

Commercial Hybrid Inverter Specifications Catalog (20kW to 125kW)

20kW – 30kW C&I Hybrid Inverters (KAC20DP2 / KAC25DP2 / KAC30DP2)

Parameter Specification

Technical Rating & Value

Nominal AC Output Power

20 kW / 25 kW / 30 kW (3-Phase 230/400 Vac, 3L+PE+N)

Max. PV Array Input Power

40 kWp (20kW) / 50 kWp (25kW) / 60 kWp (30kW)

MPPT Voltage Range / Max. DC Voltage

250 Vdc – 950 Vdc (Rated: 720 Vdc) / Max. 1000 Vdc

Number of MPPT / Strings per MPPT

4 MPPTs / 2 Strings per MPPT

Max. Current per MPPT

45 A

Battery Side Voltage Range

150 Vdc – 950 Vdc (Rated: 180 Vdc – 800 Vdc)

Max. DC Charge / Discharge Power

22 kW (20kW) / 27.5 kW (25kW) / 44 kW (30kW)

Max. DC Current

40 A x 2 (20kW) / 50 A x 2 (25kW) / 80 A x 2 (30kW)

Compatible Outdoor BESS Cabinet

KSTAR BC70DE2 (71.68 kWh) / BC89DE2 (89.6 kWh)

Efficiency & Peak Efficiency

Up to 97.5% Maximum Efficiency

UPS Transfer Time & Protection

<10-20 ms Transfer Time, IP65, DC/AC Type II SPD

Dimensions & Weight

900 × 730 × 355 mm / 101 kg



40kW – 50kW C&I Hybrid Inverters (KAC40DP2 / KAC50DP2)

Parameter Specification

Technical Rating & Value

Nominal AC Output Power

40 kW / 50 kW (3-Phase 230/400 Vac, 3L+PE+N)

Max. PV Array Input Power

80 kWp (40kW) / 100 kWp (50kW)

MPPT Voltage Range / Max. DC Voltage

250 Vdc – 950 Vdc (Rated: 720 Vdc) / Max. 1000 Vdc

Number of MPPT / Strings per MPPT

4 MPPTs / 2 Strings per MPPT

Max. Current per MPPT

45 A

Battery Side Voltage Range

150 Vdc – 950 Vdc (Rated: 180 Vdc – 800 Vdc)

Max. DC Charge / Discharge Power

33 kW / 44 kW (40kW) / 55 kW (50kW)

Max. DC Current

60 A x 2 / 80 A x 2

Compatible Outdoor BESS Cabinet

KSTAR BC89DE2 (89.6 kWh) / BC107DE2 (107.52 kWh)

Efficiency & Peak Efficiency

Up to 97.5% Maximum Efficiency

UPS Transfer Time & Protection

<10-20 ms Transfer Time, IP65, DC/AC Type II SPD, AFCI Optional

Dimensions & Weight

900 × 730 × 355 mm / 101 kg



80kW – 100kW C&I Hybrid Inverters (KAC80DP2 / KAC100DP2)

Parameter Specification

Technical Rating & Value

Nominal AC Output Power

80 kW / 100 kW (3-Phase 230/400 Vac, 3L+PE+N)

Max. PV Array Input Power

160 kWp (80kW) / 200 kWp (100kW)

MPPT Voltage Range / Max. DC Voltage

250 Vdc – 950 Vdc (Rated: 720 Vdc) / Max. 1000 Vdc

Number of MPPT / Strings per MPPT

8 MPPTs / 2 Strings per MPPT

Max. Current per MPPT

45 A

Battery Side Voltage Range

250 Vdc – 900 Vdc (Rated: 250 Vdc – 800 Vdc)

Max. DC Charge / Discharge Power

88 kW (80kW) / 110 kW (100kW)

Max. DC Current

160 A (80 A x 2)

Compatible Outdoor BESS Cabinet

KSTAR BC197DE2 (197.12 kWh) / BC215DE2 (215.04 kWh)

Efficiency & Peak Efficiency

Up to 98.0% Maximum Efficiency

UPS Transfer Time & Protection

<20 ms Transfer Time (with STS250D), IP65, DC/AC Type II SPD

Dimensions & Weight

1120 × 700 × 366 mm / >95 kg



125kW Heavy C&I Hybrid Inverter (KAC125DP2)

Parameter Specification

Technical Rating & Value

Nominal AC Output Power

125 kW (3-Phase 230/400 Vac, 3L+PE+N)

Max. PV Array Input Power

250 kWp (250.0 kWp DC Array)

MPPT Voltage Range / Max. DC Voltage

250 Vdc – 950 Vdc (Rated: 720 Vdc) / Max. 1000 Vdc

Number of MPPT / Strings per MPPT

8 MPPTs / 2 Strings per MPPT

Max. Current per MPPT

45 A

Battery Side Voltage Range

250 Vdc – 900 Vdc (Rated: 250 Vdc – 800 Vdc)

Max. DC Charge / Discharge Power

125 kW Continuous DC Power

Max. DC Current

160 A (80 A x 2)

Compatible Outdoor BESS Cabinet

KSTAR BC215DE2 (215.04 kWh) / BC233DE2 (232.96 kWh)

Efficiency & Peak Efficiency

Up to 98.0% Maximum Efficiency

UPS Transfer Time & Protection

<20 ms Transfer Time (with STS250D), IP65, DC/AC Type II SPD, AFCI Optional

Dimensions & Weight

1120 × 700 × 366 mm / >95 kg

Versatile C&I Applications Across Kenya

·        Manufacturing Plants & Industrial Factories (50kW – 125kW): Protect high-speed production lines, heavy motors, and automated machinery from KPLC outages while cutting daytime maximum demand charges in Nairobi, Industrial Area, Thika, Athi River, and Eldoret.

·        Hotels, Resorts & Commercial Malls (30kW – 100kW): Guarantee 24/7 guest comfort, lighting, refrigeration, and HVAC operations with seamless <20ms UPS backup switching in Mombasa, Naivasha, Nakuru, and Kisumu.

·        Agricultural Processing & Cold Storage Facilities (40kW – 125kW): Maintain unbroken cold chains for flowers, horticulture, tea, and dairy processing across Kitengela, Kisaju, Machakos, Kiambu, and Nanyuki.

·        Educational Institutions & Hospitals (20kW – 80kW): Keep critical laboratories, administrative IT infrastructure, and medical equipment online reliably with clean pure sine wave power and outdoor CATL battery backup.

Frequently Asked Questions (FAQs) About C&I Hybrid Inverters in Kenya

Q1: How do KSTAR C&I hybrid inverters achieve Peak Shaving to reduce KPLC demand charges?

During peak tariff hours or high-demand operational spikes, the integrated EMS directs the outdoor CATL battery bank to supply a portion of the facility load. This limits the peak kW drawn from KPLC, significantly lowering monthly maximum demand charges.

Q2: What is the function of the STS100D and STS250D cabinets in a C&I hybrid installation?

The STS (Static Transfer Switch) cabinets provide automated on-grid/off-grid transfer switching in less than 20 milliseconds. They isolate the commercial facility from the grid during blackouts and manage multi-source power integration (Grid, PV, Battery, and Diesel Generator).

Q3: Can multiple C&I hybrid inverters be paralleled for MW-scale projects?

Yes! KSTAR BluePulse hybrid inverters and EMS controllers support parallel installation and second-level EMS box communication (EMS01D), allowing scaling from 125kW up to multi-megawatt C&I solar-storage projects.

Why Choose Power & Solar Systems Ltd?

·        Certified Distributor of KSTAR C&I Solutions: We supply 100% genuine KSTAR BluePulse hybrid inverters, CATL outdoor BESS cabinets, and STS switching gear with full manufacturer warranties.

·        EPRA Certified Renewable Energy Engineers: Our senior engineering team conducts site load profile audits, power quality logging, dynamic PV-BESS sizing, electrical protection engineering, and commissioning.

·        Turnkey EPC Project Delivery across Kenya: We handle complete end-to-end design, civil bases, electrical cabling, grid synchronization, and local authority approvals across Nairobi, Kitengela, Mombasa, Nakuru, Eldoret, Kisumu, and all major commercial centers.

·        24/7 After-Sales Technical Support: Remote cloud monitoring, preventive maintenance contracts, and on-site technical service keep your C&I facility running at maximum efficiency.
